Chariot Motors offers a full range of 6.8m, 8.5m, 8.8m, 12m, and 18m lengths of city and intercity electric buses
Lengths: 6.8m, 8.5m, 8.8m, 12m, and 18m
Max. total passengers: 40, 52, 60, 84, 140
Disabled seating: 1, 2
Chariot Motors battery electric buses offer independent emissions free travel. Our full product range offers 6.8m, 8.5m, 8.8m, 12m, and 18m lengths of city and intercity electric buses. Our battery electric buses will cut your costs by 80 percent per kilometre compared to diesel traction. Maintenance is 30 percent more economical than diesels due to the lack of a reciprocating engine and transmission.
Download technical data brochures of Chariot battery e-buses below:
The 6.8-metre Chariot mini city battery e-bus
The 8.5-metre Chariot small city battery e-bus
The 8.8-metre Azure small city battery e-bus
The 12-metre Chariot city battery e-bus
The 12-metre Azure city battery e-bus
Chariot Motors battery electric buses: 6.8m, 8.5 m, 8.8m, 12m and 18m
Мain technical parameters of Chariot Motors' 6.8m and 8.5m battery electric buses
6.5 m battery e-bus description
Electric motor
Fujian Yida
Energy storage system
CALT Lithium iron phosphate battery
Charging system
CCS-combo 2 type charging socket
Charging
up to 2 hours
Body
Length × Width × Height (mm)
6850 × 2100 × 2900
Passenger capacity seated
13+2 (foldable) +1
Passenger capacity
max. 40
Door arrangement
single inward swing door
Access ramp
Manual wheelchair ramp, or electric wheelchair ramp
Entertainment
Wi Fi, USB chargers and audio system, gooseneck microphone
Chassis
Front axle
independent suspension front axle
Rear axle
DDAC EP8 E-axle
Steering
hydraulic
Propeller shaft
Maintenance-free
Brakes
Disc brake, Wabco EBS, ABS and ASR
Auxiliary brake
Electric energy recycle system
Suspension levelling system
ECAS II with kneeling function
Ventilation and Air-conditioning
Air-conditioning
Separate climate control system for driver and passengers; Battery thermo control system
Passenger compartment heating system
Heating pump; and Spheros electric heater
Auxiliary heating system
Electric defroster

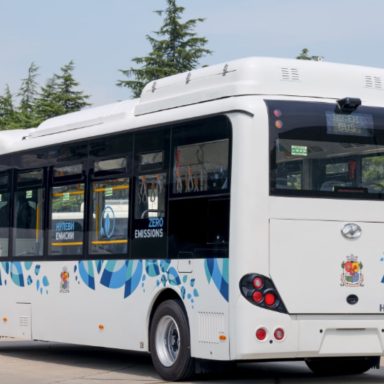

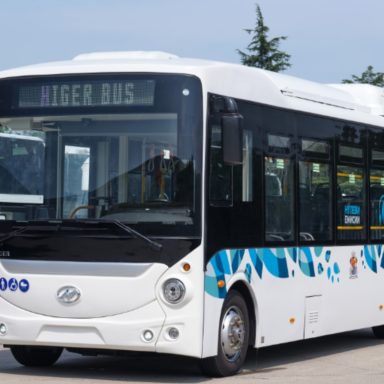

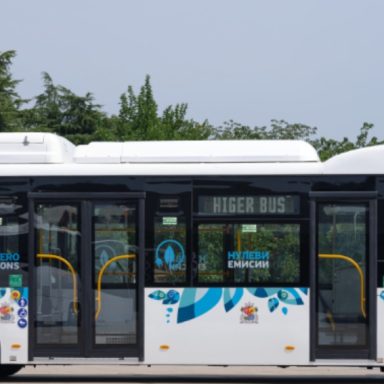

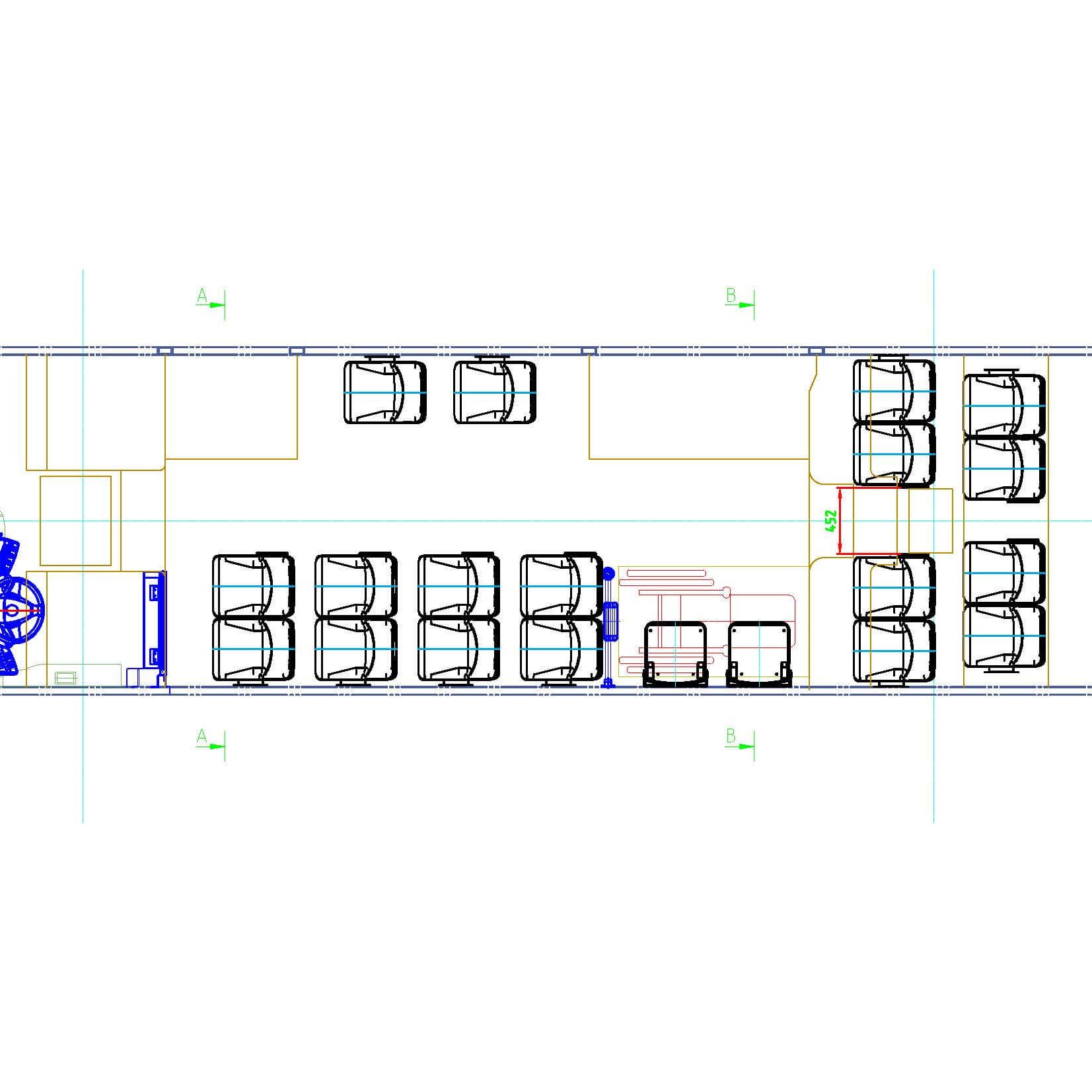

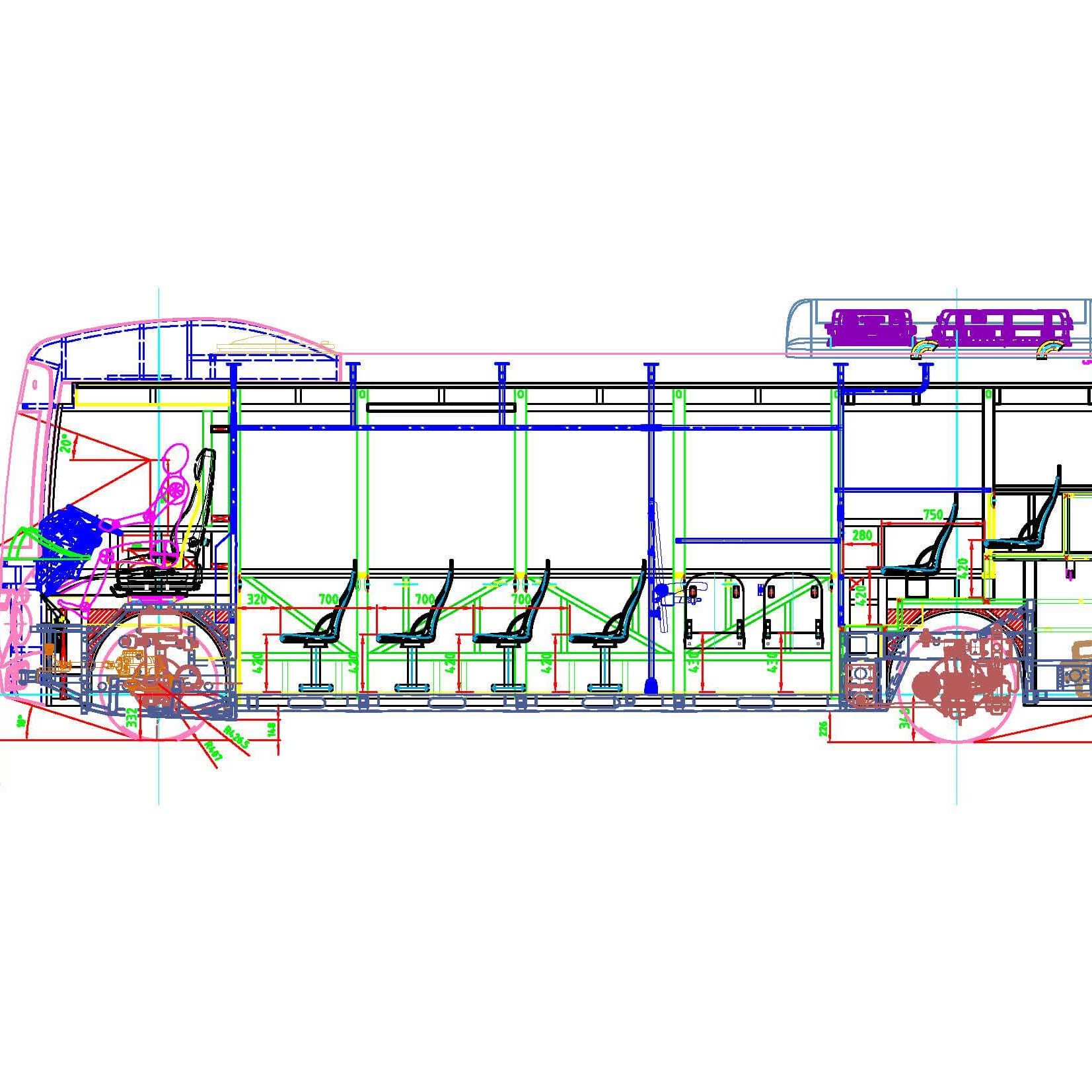

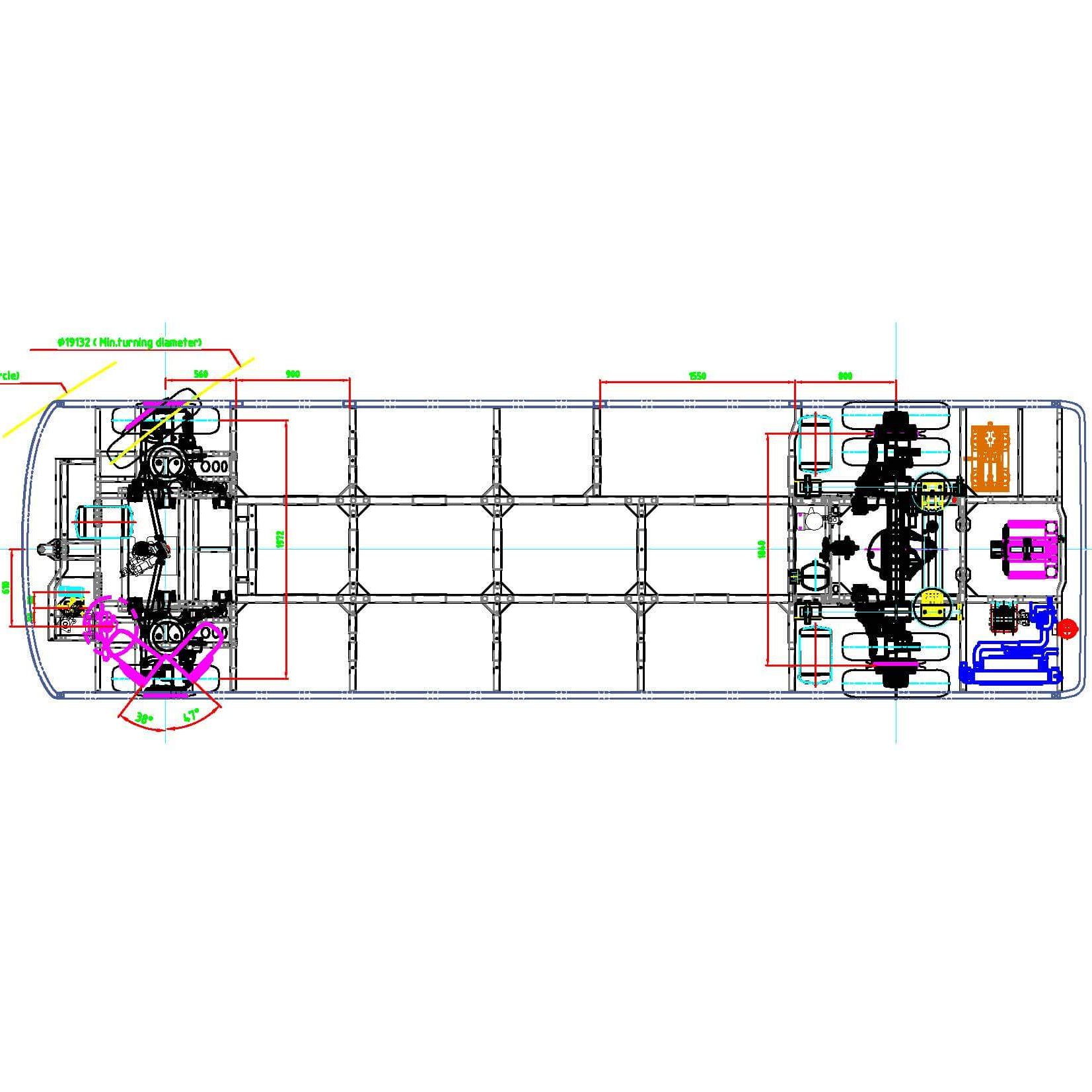

8.5 m battery e-bus description
Electric motor
Prestolite (DANA)
Energy storage system
CALT Lithium iron phosphate battery
Charging system
CCS-combo 2 type charging socket
Charging
up to 2 hours
Body
Length × Width × Height (mm)
8520 × 2814 × 3215
Passenger capacity seated
14+2 (foldable) +1; or 13+3 (foldable) +1
Passenger capacity
Max. 52
Door arrangement
one double door and one single door

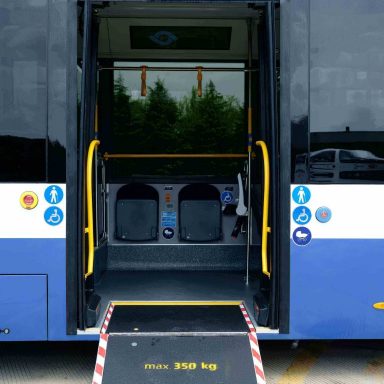

Access ramp
Manual wheelchair ramp; or Electric wheelchair ramp
Entertainment
Wi Fi, USB chargers and audio system, gooseneck microphone
Chassis
Front axle
Maintenance-free wheel hub
Rear axle
Maintenance-free wheel hub
Steering
Bosch 8098
Propeller shaft
Maintenance-free
Brakes
Disc brake, Wabco EBS, ABS and ASR
Auxiliary brake
Electric energy recycle system
Suspension levelling system
ECAS II with kneeling function
Ventilation and Air-conditioning
Air-conditioning
Separate climate control system for driver and passengers; Independent battery thermo control system
Passenger compartment heating system
Heating pump; Spheros electric heater
Auxiliary heating system
Electric defroster
Мain technical parameters of Chariot Motors' 8.8m and 12m battery electric buses

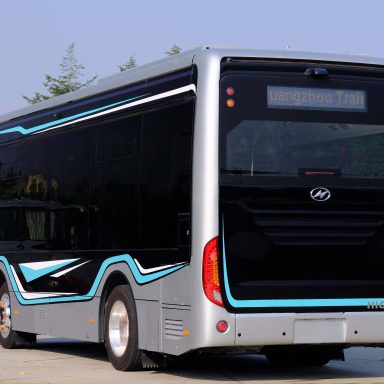

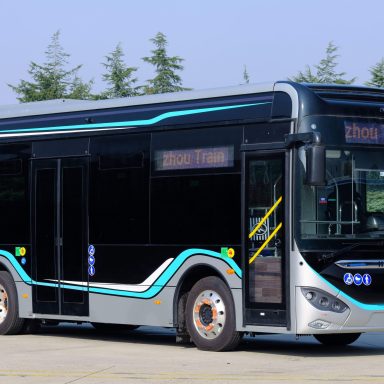

8.8 m battery e-bus description
Electric motor
DANA MD100F
Energy storage system
CALT Lithium iron phosphate battery
Charging system
CCS-combo 2 type charging socket
Charging
up to 2 hours
Body
Length × Width × Height (mm)
8820 × 2440 × 3260
Passenger capacity seated
19+2 (foldable) +1
Passenger capacity
max. 60
Door arrangement
2-2, single inswing front door/ double sliding middle door
Access ramp
Manual wheelchair ramp, or electric wheelchair ramp
Entertainment
Wi Fi, USB chargers and audio system, gooseneck microphone
Chassis
Front axle
Portable axle
Rear axle
Low floor axle
Steering
wheel tilt and telescopic, Bosch 8095 steering gear
Propeller shaft
Maintenance-free
Brakes
Disc brake, Wabco EBS, ABS and ASR
Auxiliary brake
Electric energy recycle system
Suspension levelling system
ECAS II with kneeling function
Ventilation and Air-conditioning
Air-conditioning
Separate climate control system for driver and passengers; Battery thermo control system
Auxiliary heating system
Electric defroster

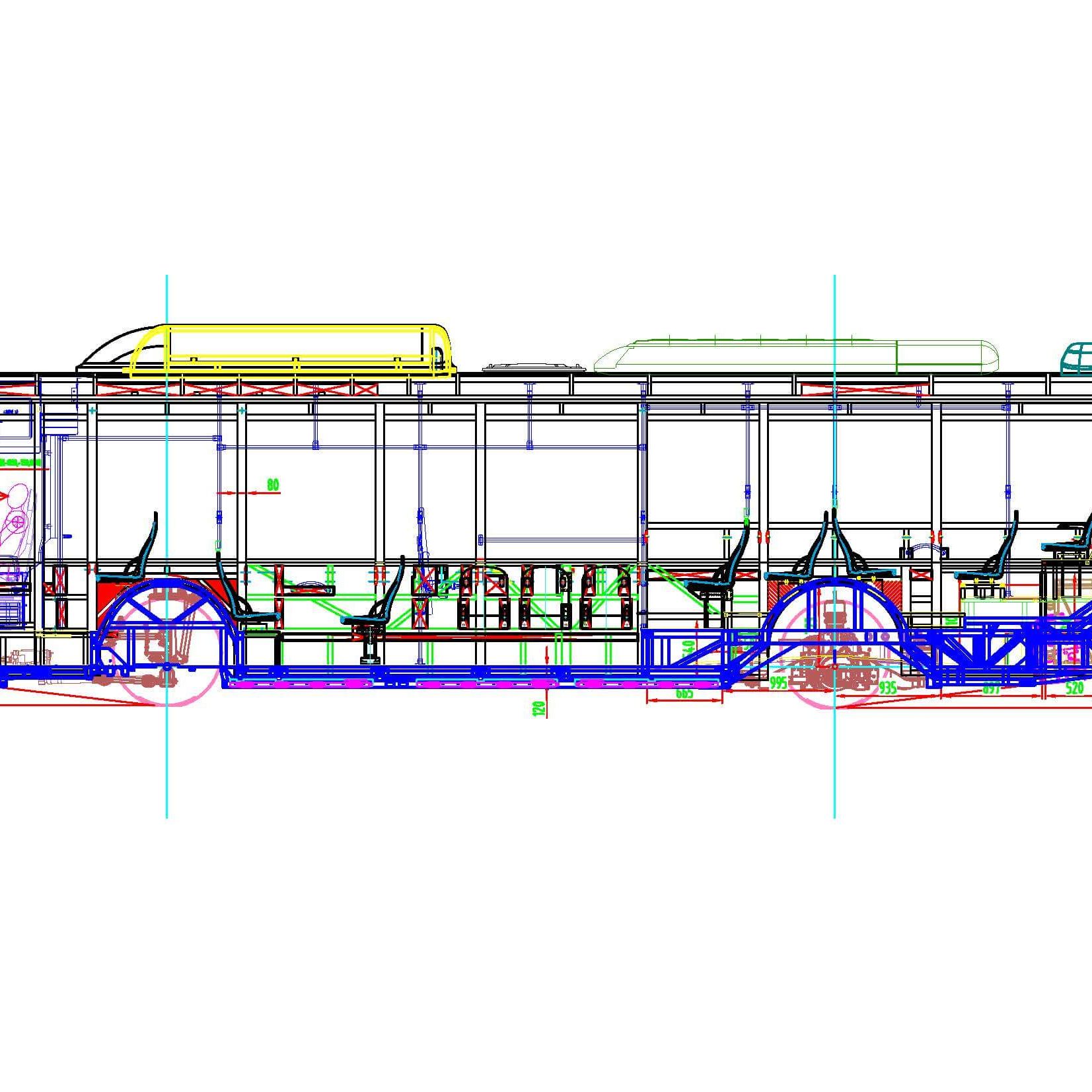

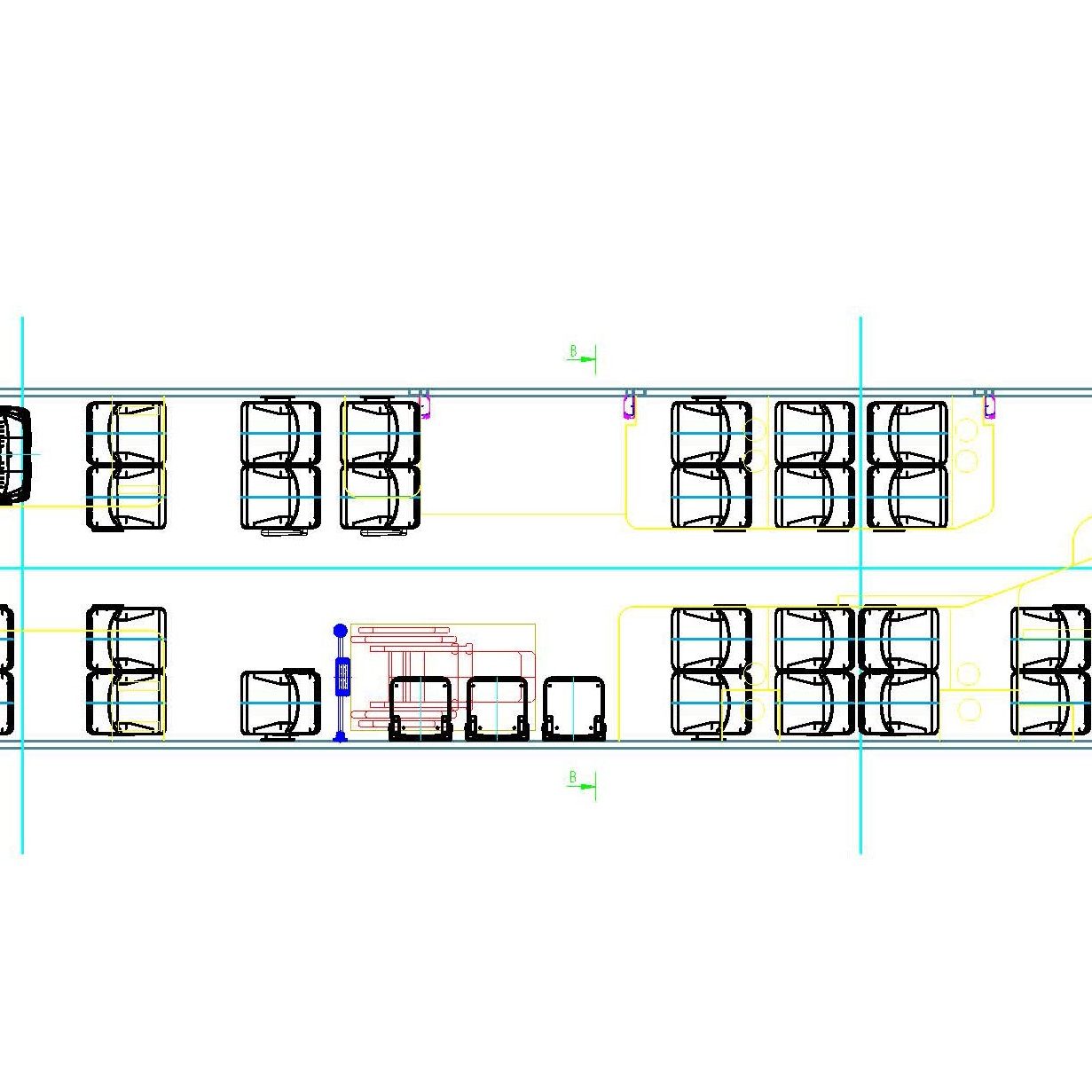

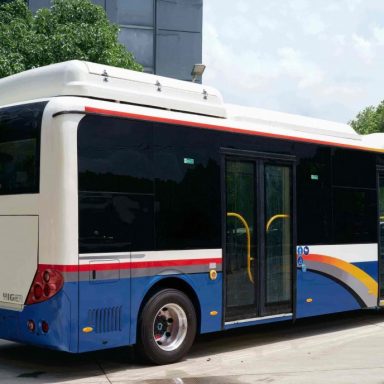

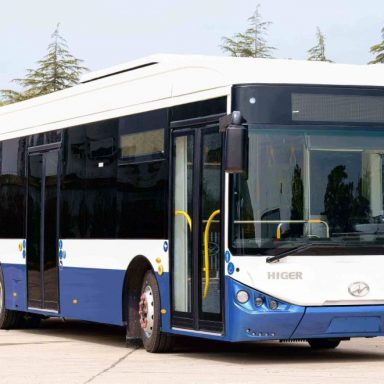

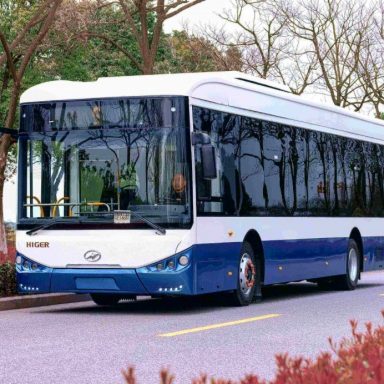

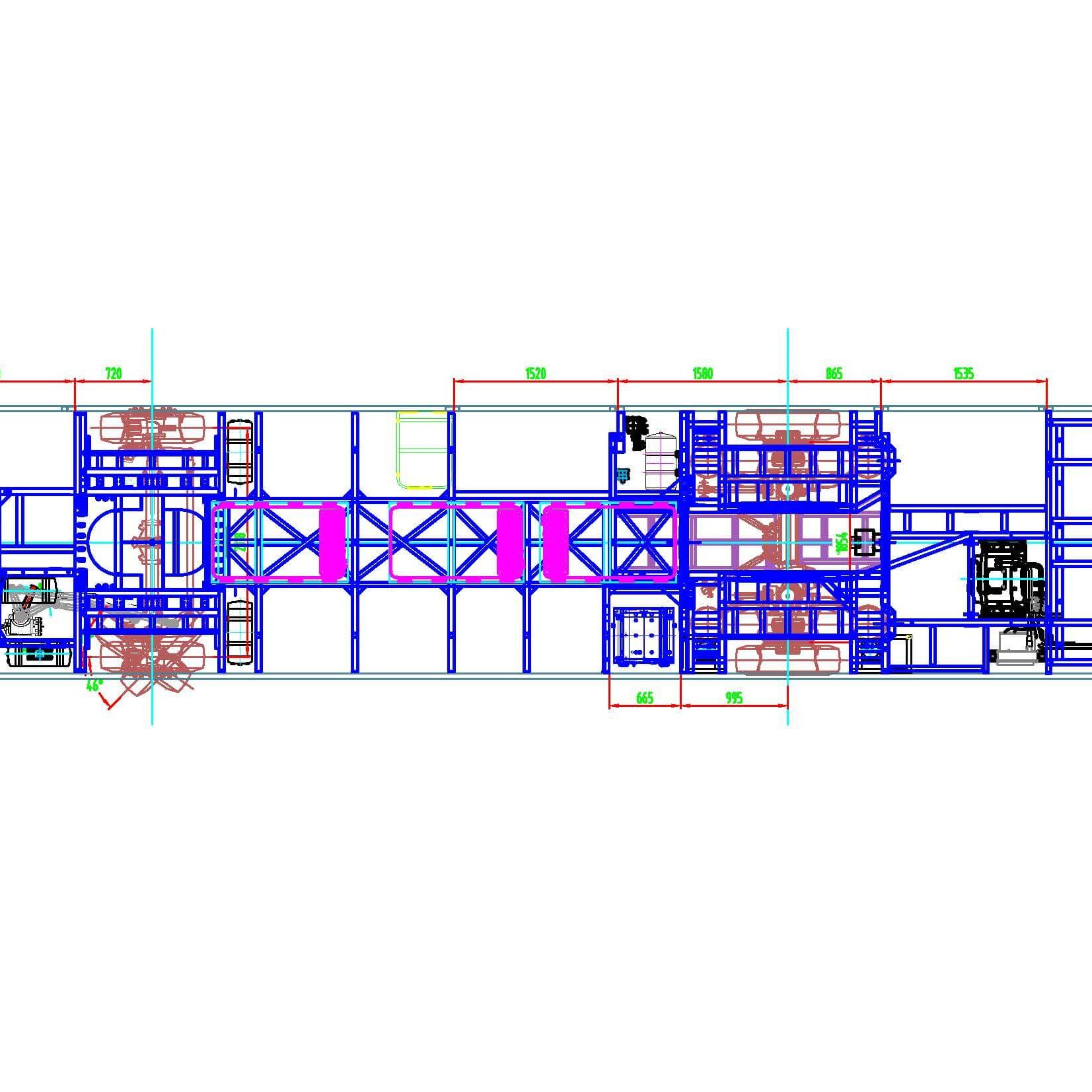

12 m battery e-bus description
Electric motor
Siemens
Energy storage system
CALT Lithium iron phosphate battery
Charging system
CCS-combo 2 type charging socket
Charging
up to 3 hours
Body
Length × Width × Height (mm)
12090 × 2550 × 3383
Passenger capacity seated
29+3 (foldable) +1
Passenger capacity
Max. 84
Door arrangement
3 (optional 2 double doors)
Access ramp
Manual wheelchair ramp; or Electric wheelchair ramp
Entertainment
Wi Fi, USB chargers and audio system, gooseneck microphone
Chassis
Front axle
ZF RL82EC/ RL82A
Rear axle
ZF AV 133
Steering
Electro-hydraulic power steering, Bosch 8098 steering gear
Propeller shaft
Maintenance-free
Brakes
Disc brake, Wabco EBS, ABS and ASR
Auxiliary brake
Electric energy recycle system
Suspension levelling system
ECAS II with kneeling function
Ventilation and Air-conditioning
Air-conditioning
Separate climate control system for driver and passengers; Independent battery thermo control system
Auxiliary heating system
Electric defroster
Мain technical parameters of Chariot Motors' 18m battery electric buses

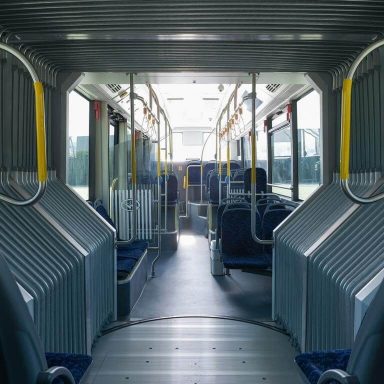

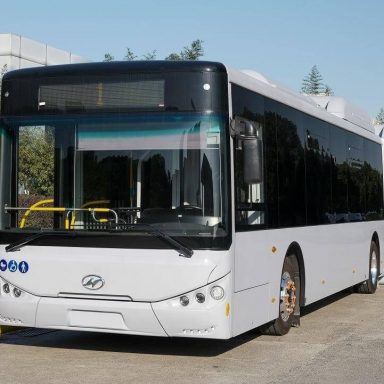

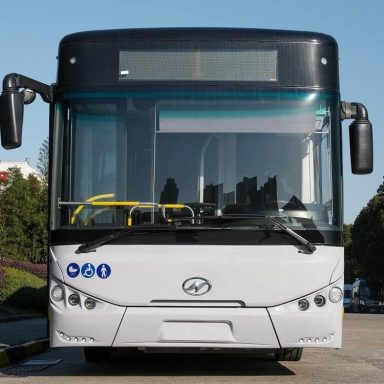

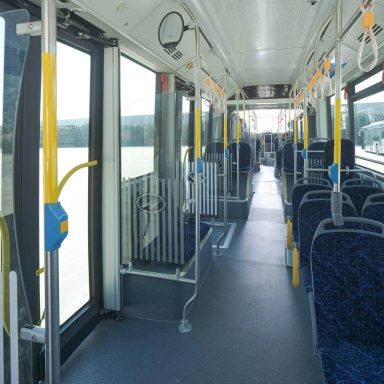

18 m battery e-bus description
Electric motor
DANA
Energy storage system
CALT Lithium iron phosphate battery
Charging system
CCS-combo type charging socket
Charging
up to 3 hours
Chassis
Front axle
ZF RL82A
Rear axle
ZF AVN 132
Steering
ZF AV 133
Brakes
Wabco EBS, ABS and ASR, front, middle and rear axle disc brake
Suspension
Air-suspension with 6 air bags ECAS (electronically controlled air suspension)
Body
Length × Width × Height (mm)
18090 x 2550 x 3300
Passenger capacity seated
38~48+2+1; 41+4 (foldable) +1
Passenger capacity
max. 140
Door arrangement
front inswing door + 3 sliding doors
Access ramp
Manual wheelchair ramp; or Electric wheelchair ramp
Entertainment
Wi Fi, USB chargers and audio and radio system, gooseneck microphone, reverse camera and surveillance system
Ventilation and Air-conditioning
Air-conditioning
Separate climate control system for driver and passengers; In dependent battery thermo control system
Auxiliary heating system
Electric defroster
Slow charging battery e-buses occupy a good share of world public transport operators’ fleets. There are good reasons for that:
They use overnight depot charging, with charging infrastructure safe inside operator premises;
Buses are interoperable across routes without charging infrastructure;
Night recharging coincides with off-peak times and uses cheap electricity;
There is no need for daytime charging or public chargers.
Technical data of Chariot Motors' battery electric buses
